*This mileage data is experimental data obtained when using pedal assist only under PAS 1.
*Factors that affect the range of e-bike include the weight of the rider, the level of pedal assist the rider uses, how much the rider uses the throttle, terrain, speed, weather conditions, towing weight, among others.
Craft Your Own Style
Dive into personal expression with our complimentary stickers and customizable panels, empowering your DIY spirit. With our e-bike, you're not just riding; you're showcasing your unique style to the world.
-
+
Electronics
Motor
Rated 48V 750W(Peak 1200W)
Max torque
85N.m
Removable Battery
48V 13AH(624Wh) Lithium-Ion
Charger
100V-240V AC power outlets
Charging Time
6.5 hours
Controller
48V 25A Intelligent brushless
Range(Pedal assist)
70miles
Range(Throttle only)
40miles
Top Speed
28mph
PAS
1:1 Intelligent Pedal Assistant System
Display
JN-06C Color LCD
Front Light
48V10W 160LUX high-output integrated LED with horn
Rear Light
48V Brake highlight, turn signal flash, rear light steady
-
+
Structural
L * W * H
65” * 29.1” * 38.1”
Max Load
400 lbs
Net Weight
87 lbs
Fat Tires
CHAOYANG 20" * 4.0
Frame
Aluminium Alloy
Front Fork
EXSHO Suspension Fork
Derailleur
Single speed
Front Brake
LOGAN Hydraulic Disc Brake
Rear Brake
LOGAN Hydraulic Disc Brake
Brake Rotors
180mm Martensitic stainless steel(2CR13)
Pedals
High-strength plastic(PP) Pedals
Stem
Aluminium Alloy
Fender
F&R: Plastic Standard Fenders
Shelves
Optional
Accessory Compatibility
Fits all QIOLOR's accessories
Recommended Height
5'1" - 5'9"
Seat
1 rider
-
+
Geometry


Owner's Manual

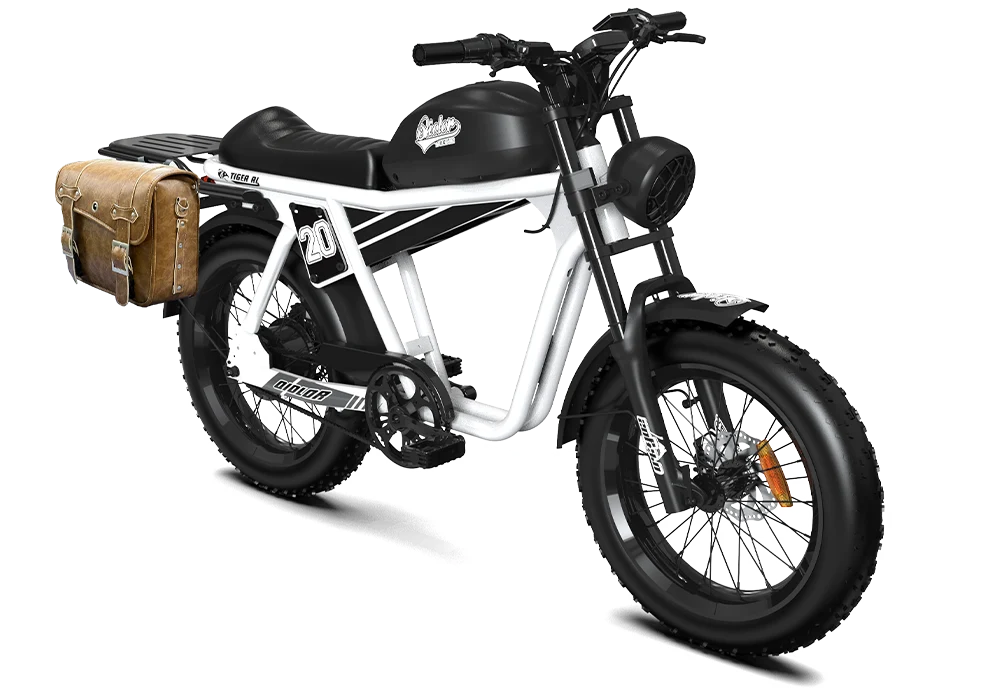

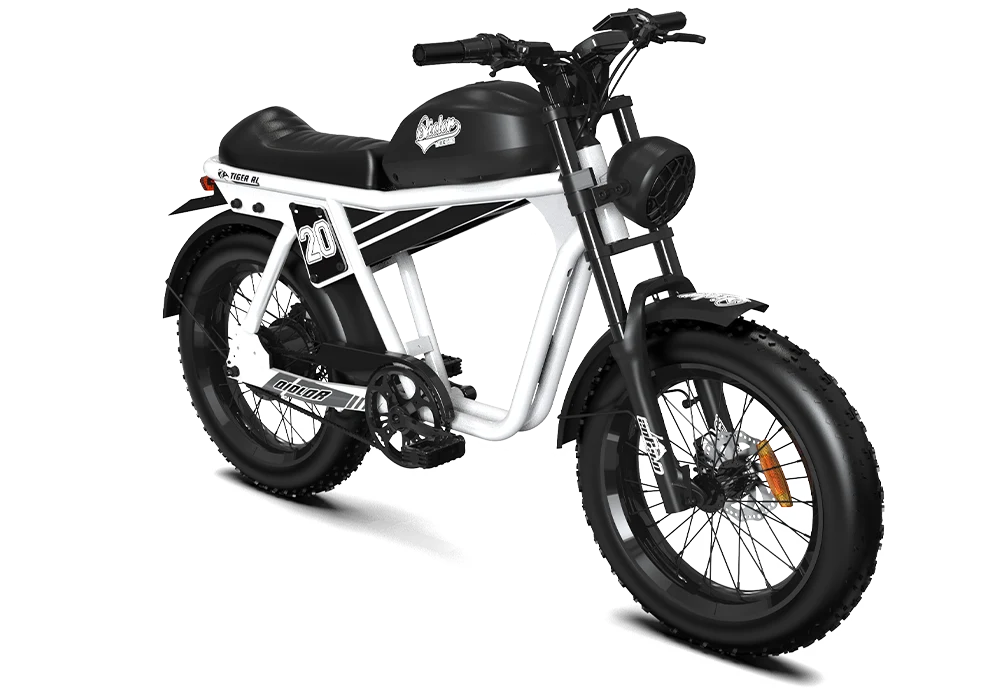

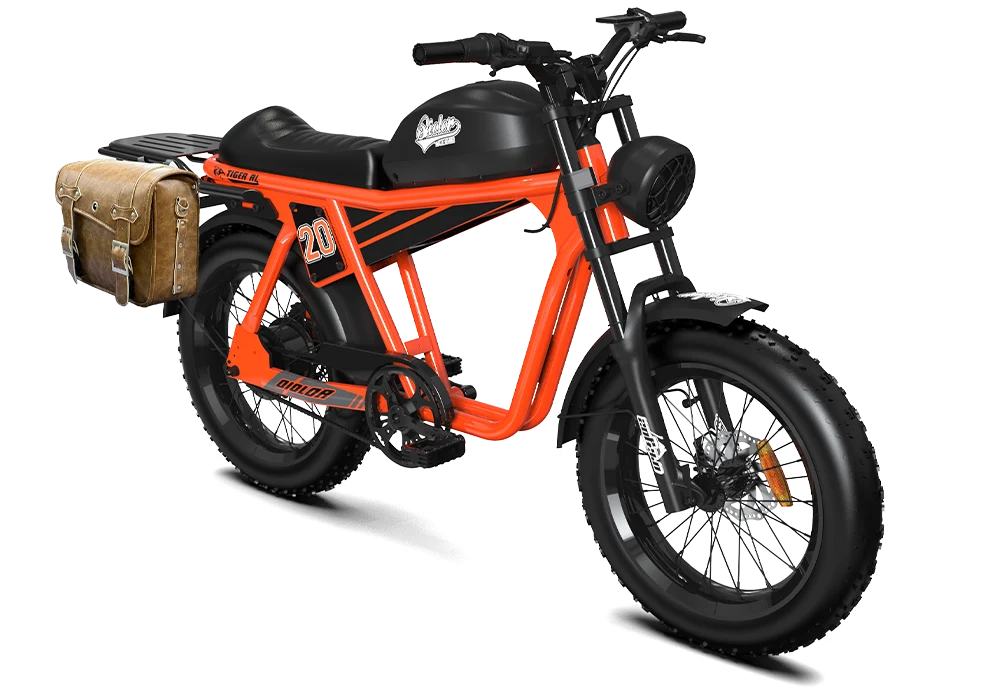

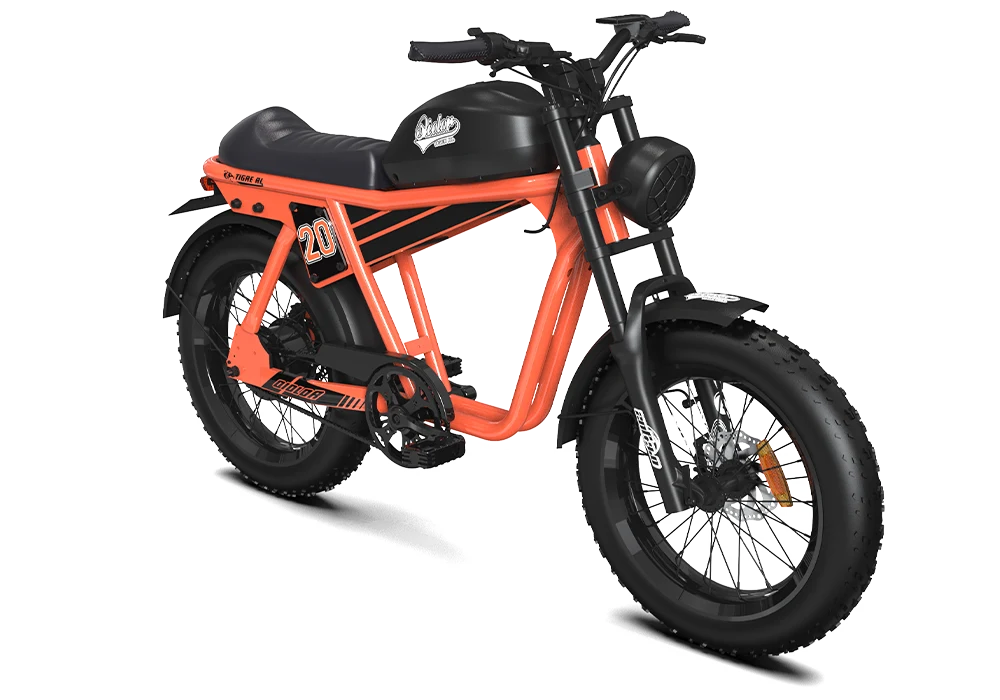

TIGER RL

TIGER JR

TIGER RE

TIGER PLUS

L*W*H
65” * 29.1” * 38.1”
65” * 29.1” * 38.1”
65” * 29.1” * 38.1”
71.2” * 29.1” * 39.4”
Suspension System
Front fork
Front fork
hydraulic suspension
Air suspension
Seat
1 rider
1 rider
1 rider
2 riders
Brake
Hydraulic disc brake
Mechanical disc brake
Dual-Piston hydraulic brakes
Four-Piston hydraulic brakes
Recommended Height
5'1''-5'9''
5'1''-5'9''
5'1''-5'9''
5'3''-6'6''
Throttle
Half-twist throttle
Half-twist throttle
Half-twist throttle
Thumb throttle
Gear System
Single speed
Single speed
Single speed
7-Speed
Motor
750w
500w
750w
750w
Battery
48V 13Ah
48V 10Ah
48V 15 / 35Ah
48V 15 / 35Ah
Max Ranges
70miles
55 miles
60 / 130 miles
60 / 130 miles
Top Speed
28mph
24 mph
26 mph
26 mph
